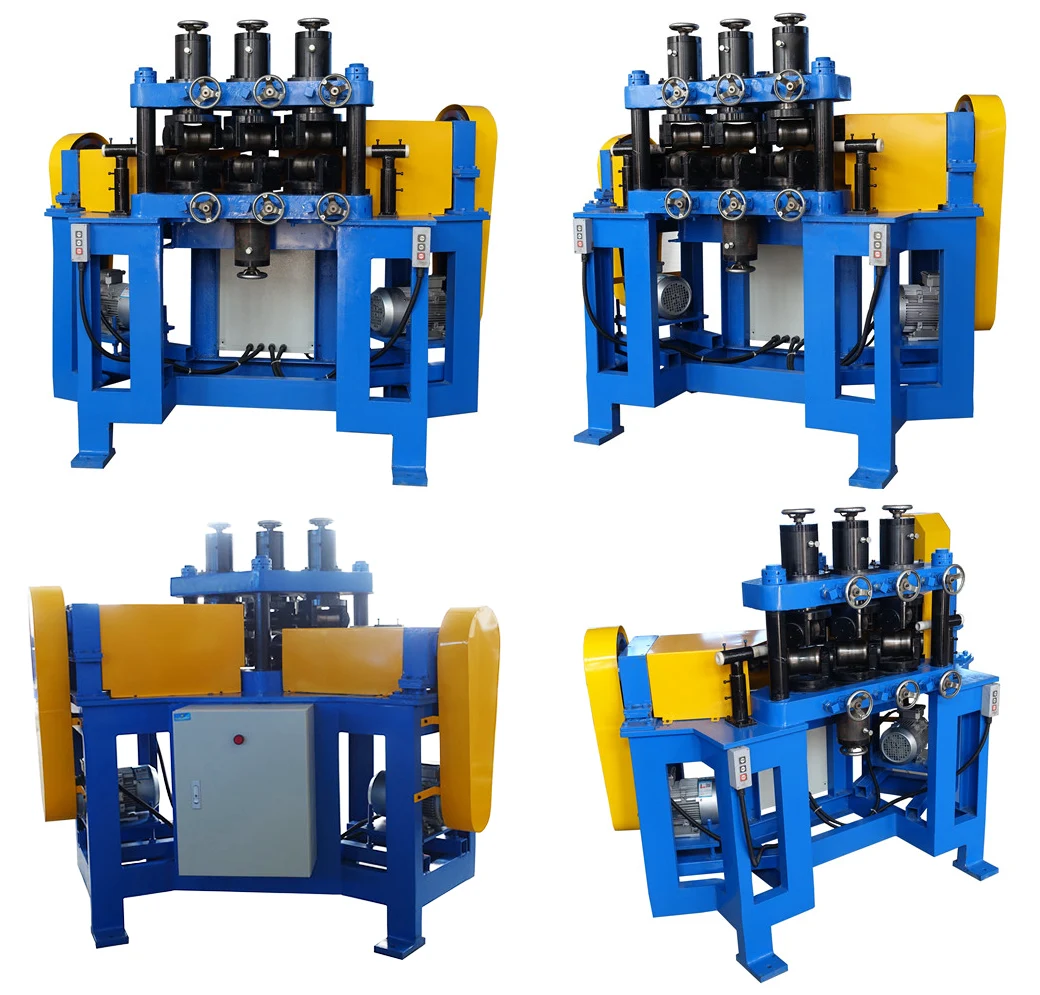

3-axis Straightening Machine

Introducing the 3-axis Straightening Machine from Feihong Machinery&Electrical, a leading manufacturer and supplier in the precision machinery industry. Produced in our advanced factory, this machine offers unparalleled accuracy in straightening various materials. Designed to enhance productivity and efficiency, the 3-axis Straightening Machine is an essential tool for industrial applications, ensuring optimal performance and superior quality.

Main structure and properties

3-axis Straightening Machine is mainly used for straightening and repairing bent and deformed pipes in the process of pipe making or annealing;the machine is combined with 3 groups or(5 groups)roll assemblies coupled with transmission and motor.Different pipe diameter straightening,straightening of empty and filled pipes within a certain range does not require replacement of straightening wheels.The machine is equipped with frequency converter,used to control the speed adjustment of different tubes.

Main technical parameters

1.Applicable Diameter Range (mm): 5-20

2.Applicable Diameter Length(mm): 350-6000

3.Speed: Frequency Converter(Speed Adjustment/Fixed Speed)

4.Voltage: Three-phase 480V/three-phase 380V/three-phase 220V/single-phase 220V 5.Power:1.5(2.2)KW*2

6.Straightening group: 3 sets/5 sets

7.Machine Volume(mm): 1500*1300*1500

8.Machine weight: 600KG/800KG
